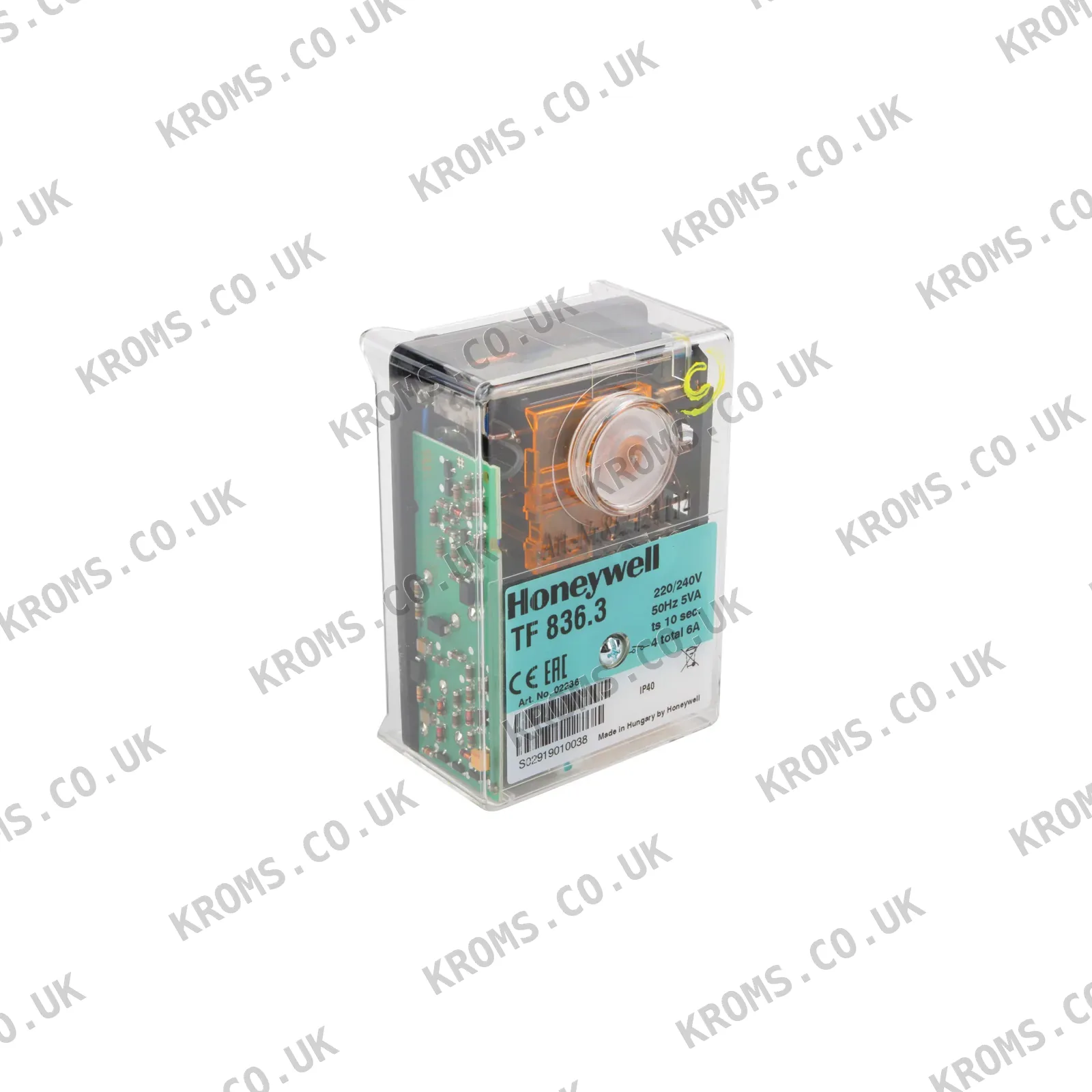

Honeywell control box TF836.3 02236
SKU 02236
Model TF836.3
Brand Honeywell
Photos
Key specifications
| Application | 1- or 2-stage oil burners |
|---|---|
| Ambient temperature | 0–60 °C |
| Supply voltage | 220–240 V |
| Flame detector type | photoresistor, infrared, UV |
| Fuel | oil |
| Cycle type | intermittent |
| Flame detection methods supported | photoresistor, infrared, UV |
| Frequency | 50 Hz |
| Safety time | 10 s |
| Reset wait time | 60 s |
| Firing stages | 1- or 2-stage |
| Pre-purge time | 12 s |
| Pre-ignition time | 12 s |
| Protection class (IP) | IP44 |
| Burner capacity | up to 30 kg/h |
| Operation type | intermittent |
| Installation position | any |
| Mounting position | any |
| Post-ignition time | 2–4 sec |
| Weight incl. wiring base | 0.25 kg |
| Frequency range | 40–60 Hz |
| Power consumption | 5 W |
175.60 EUR
159.64EUR
in stock · 1
incl. 21% VAT · 131.93 EUR excl. VAT · shipping calculated at checkout
- Worldwide shipping from stock
- Original manufacturer part
- Dispatch within 24 h for stocked items
Description
This control box is designed for intermittent operation of 1- or 2-stage oil burners with a capacity up to 30 kg/h. It operates on a supply voltage of 220–240 V AC at 50 Hz (40–60 Hz) and consumes 5 W. The unit provides pre-purge and pre-ignition times of 12 s each, a post-ignition time of 2–4 s, and a safety time of 10 s. After a lockout, the reset wait time is 60 s. It supports flame detection via photoresistor, infrared, or UV sensors, and is rated IP44 for ambient temperatures from 0 to 60 °C. The control box weighs 0.25 kg including the wiring base.
Further details
| Flame Detector | photoresistor MZ 770 S, infrared-flicker detector IRD 1010, UV solid state sensor UVD 970 |
|---|---|
| Mounting position | any |
| Power consumption | ca. 5 VA |
| Pre-ignition time | ca. 12 sec |
| Pre-purge time | ca. 12 sec |
| Protection class | IP44 |
| Reset time from lockout | ca. 60 sec |
All specifications
| Application | 1- or 2-stage oil burners |
|---|---|
| Ambient temperature | 0–60 °C |
| Supply voltage | 220–240 V |
| Flame detector type | photoresistor, infrared, UV |
| Fuel | oil |
| Cycle type | intermittent |
| Flame detection methods supported | photoresistor, infrared, UV |
| Frequency | 50 Hz |
| Safety time | 10 s |
| Reset wait time | 60 s |
| Firing stages | 1- or 2-stage |
| Pre-purge time | 12 s |
| Pre-ignition time | 12 s |
| Protection class (IP) | IP44 |
| Burner capacity | up to 30 kg/h |
| Operation type | intermittent |
| Installation position | any |
| Mounting position | any |
| Post-ignition time | 2–4 sec |
| Weight incl. wiring base | 0.25 kg |
| Frequency range | 40–60 Hz |
| Power consumption | 5 W |
Part numbers
| SKU | 02236 |
|---|---|
| Additional article | 852.124.114 |
| Model | TF836.3 |
