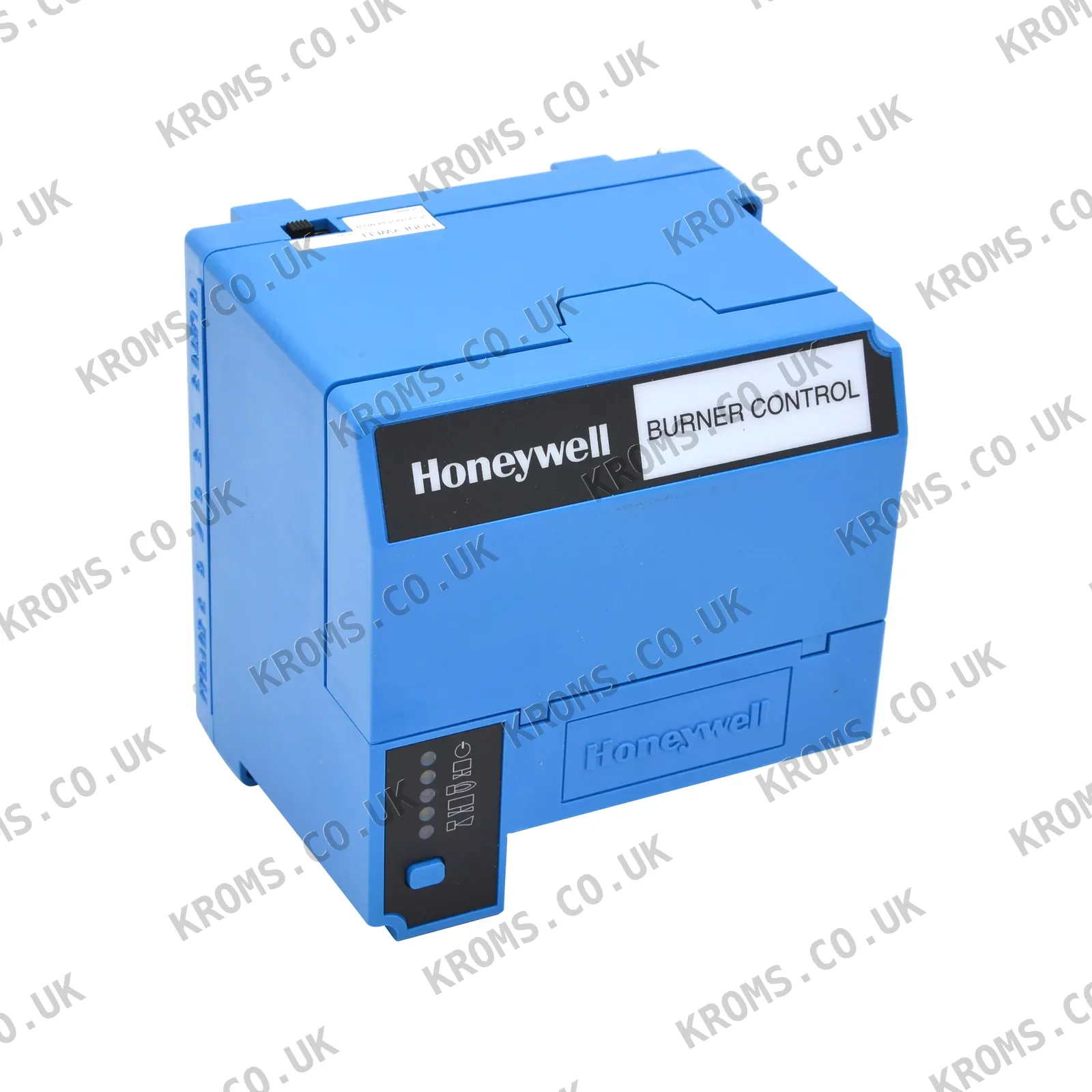

Honeywell Automatic burner control unit EC7850A1122/U
SKU EC7850A1122/U
Brand Honeywell
Photos
Key specifications
| Ambient temperature | -40–60 °C |
|---|---|
| Weight | 700 g |
| Frequency | 50–60 Hz |
| Power consumption | 10 W |
| Transport temperature | -40–66 C |
| Start-up period | 2 seconds |
| Power supply voltage (low voltage) | 220–240 V |
| Connected load | 2000 VA |
| Relative humidity | 85 % |
| Fuse rating | 20 A |
| Width | 127 mm |
| Height | 127 mm |
| Number of LEDs | 5 |
| Number of switch functions | 5 |
| Non-volatile memory | process history and lockout status |
| Communication interface | communication interface |
| External voltage control | external voltage control |
| Interchangeability | interchangeable flame signal amplifiers |
| Thickness (with base Q7800A) | 133 mm |
| LED indicators | 5 LEDs |
| Interchangeable flame signal amplifiers | interchangeable |
| Compatible flame detectors | Honeywell flame detectors |
| Thickness with base Q7800A | 155 mm |
| Remote transmission | local or remote |
1645.49 EUR
1495.90EUR
in stock · 1
incl. 21% VAT · 1236.28 EUR excl. VAT · shipping calculated at checkout
- Worldwide shipping from stock
- Original manufacturer part
- Dispatch within 24 h for stocked items
Description
Honeywell EC7850A1122/U is an automatic burner control unit for sequencing burner operations, flame monitoring, system diagnostics, and fault detection. It operates on 220–240 V, 50–60 Hz, consumes up to 10 W, and has a connected load limit of 2000 VA. The unit is rated for ambient temperatures from -40 to 60 °C and transport temperatures from -40 to 66 °C, with non-condensing humidity up to 85%. It features five LEDs for status indication, a five-function switch, external voltage control, and a communication interface. Process history and lockout status are stored in non-volatile memory. The controller weighs 700 g and measures 127 mm × 127 mm × 133 mm (155 mm with Q7800A base).
Further details
| Dimensions | width - 127 mm; height - 127 mm; thickness - 133 mm with base Q7800A, thickness - 155 mm with base Q7800B |
|---|---|
| Energy dissipation | 10 W max |
| Fuse | 20 A max. FRN type or equivalent |
| Humidity value | constant relative humidity 85%, non-condensing |
| Vibration | 0.5G in the immediate environment |
Choosing and fitting
Controllers of this type are selected by the mounting base (Q7800A or Q7800B) and the existing wiring configuration. The overall depth varies with the base, so confirm the base type before ordering. Ensure the controller is compatible with the installed Honeywell flame detector. Check that the external voltage control and communication interface connections match the system.
Fits equipment
Honeywell flame detectors
All specifications
| Ambient temperature | -40–60 °C |
|---|---|
| Weight | 700 g |
| Frequency | 50–60 Hz |
| Power consumption | 10 W |
| Transport temperature | -40–66 C |
| Start-up period | 2 seconds |
| Power supply voltage (low voltage) | 220–240 V |
| Connected load | 2000 VA |
| Relative humidity | 85 % |
| Fuse rating | 20 A |
| Width | 127 mm |
| Height | 127 mm |
| Number of LEDs | 5 |
| Number of switch functions | 5 |
| Non-volatile memory | process history and lockout status |
| Communication interface | communication interface |
| External voltage control | external voltage control |
| Interchangeability | interchangeable flame signal amplifiers |
| Thickness (with base Q7800A) | 133 mm |
| LED indicators | 5 LEDs |
| Interchangeable flame signal amplifiers | interchangeable |
| Compatible flame detectors | Honeywell flame detectors |
| Thickness with base Q7800A | 155 mm |
| Remote transmission | local or remote |
Part numbers
| SKU | EC7850A1122/U |
|---|---|
| Additional article | 534.412.011 |
