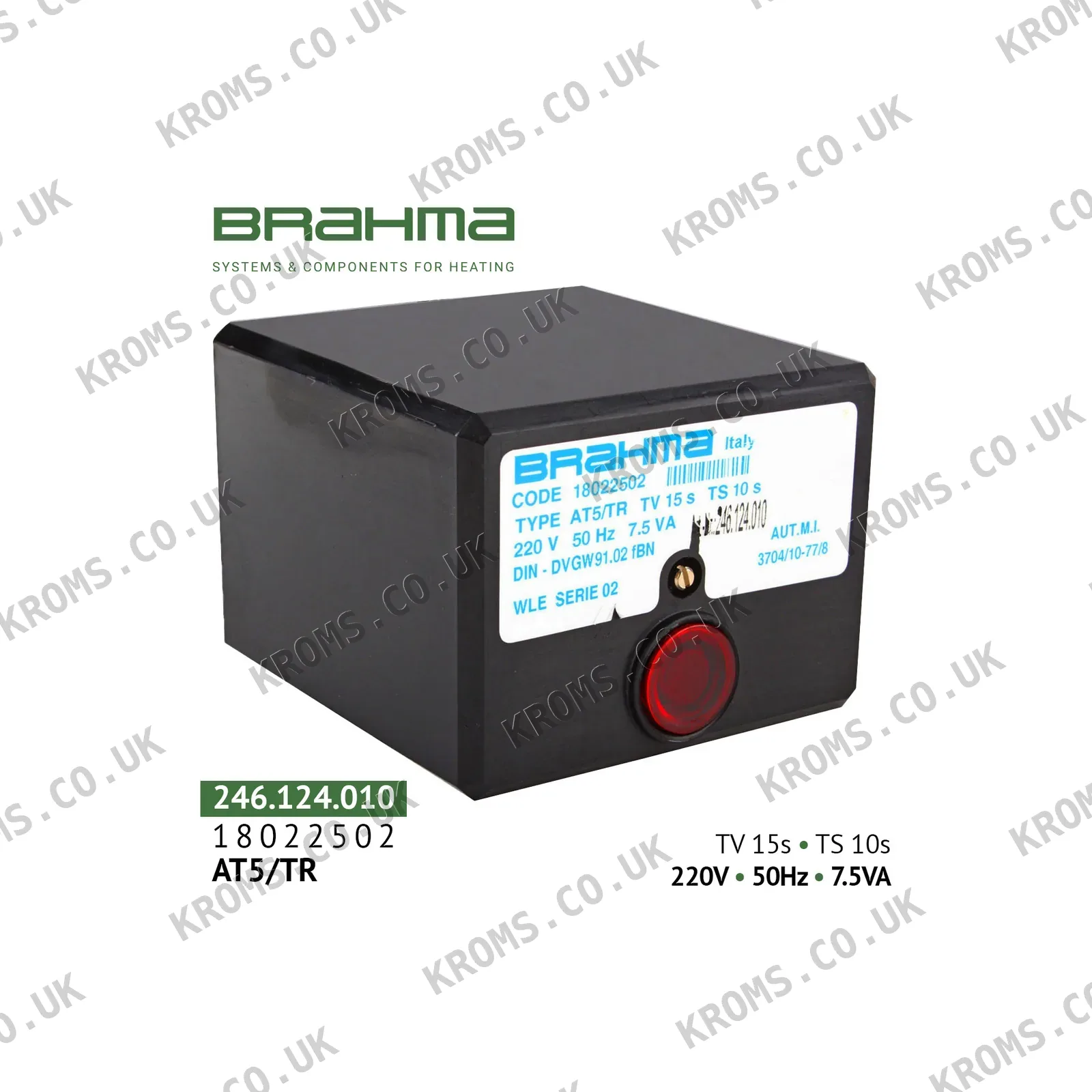

Brahma Control box 18022502

The Brahma Control box 18022502 is a safety device for atmospheric gas burners, designed for use in residential and commercial applications. It operates at a supply voltage of 220 V and has a safety time of 10 seconds. The control box weighs 0.515 kg and has an IP40 protection class. Its body is made of thermosetting plastic, and it can be installed in any position. This model is compatible with Brahma AT5/TR burners.

Control boxes of this type are selected based on the burner's fuel type, supply voltage, and safety time requirements. Before ordering, verify the voltage and safety time match the burner's specifications. The device can be installed in any orientation, but ensure proper grounding and correct voltage polarity. Always check the control system after installation or replacement.

When a control box of this kind fails, the burner may not ignite or may shut down unexpectedly. Common issues include failure to start, intermittent operation, or no flame signal. Check the ionization current and insulation resistance, and inspect the detection electrode and cables for damage or moisture.
