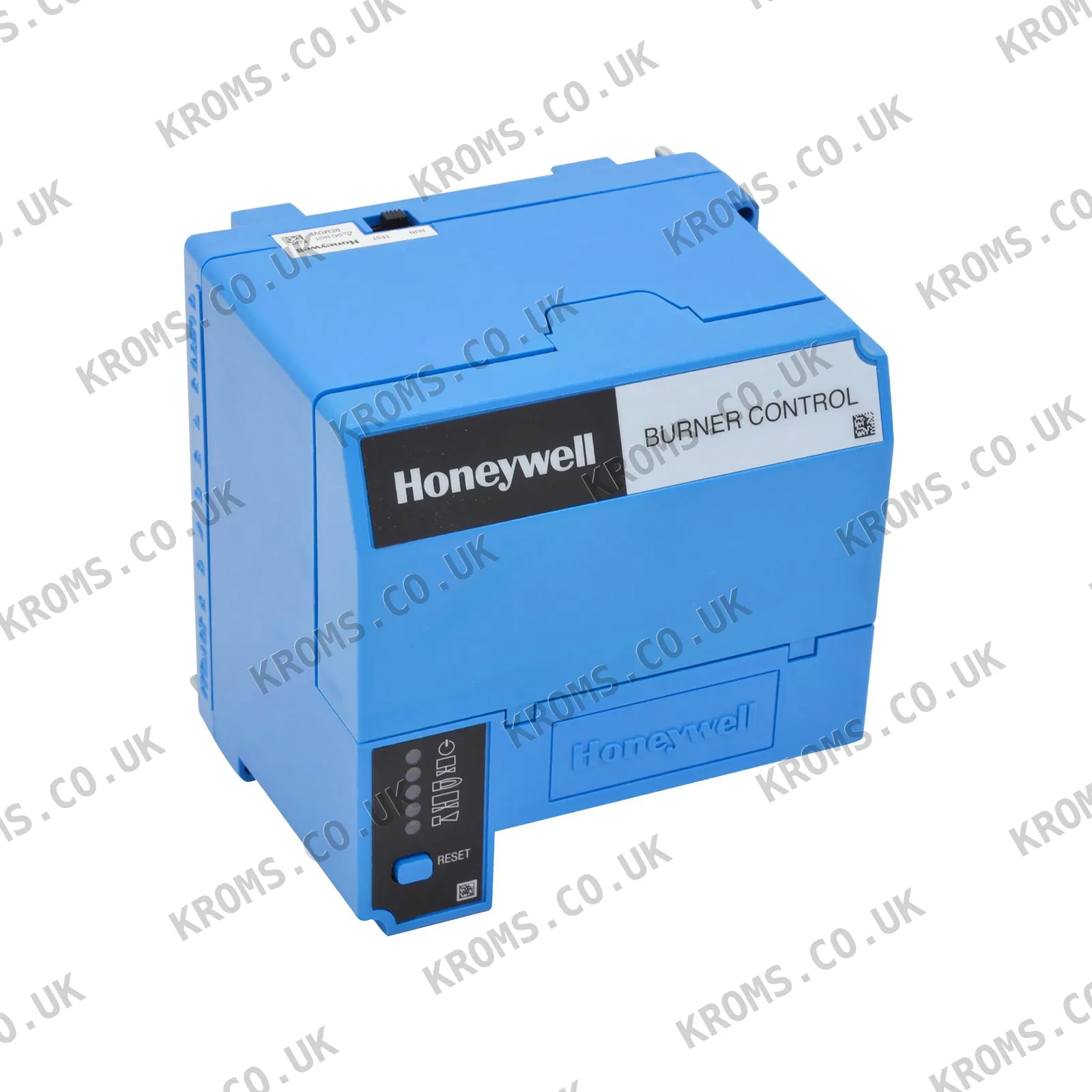

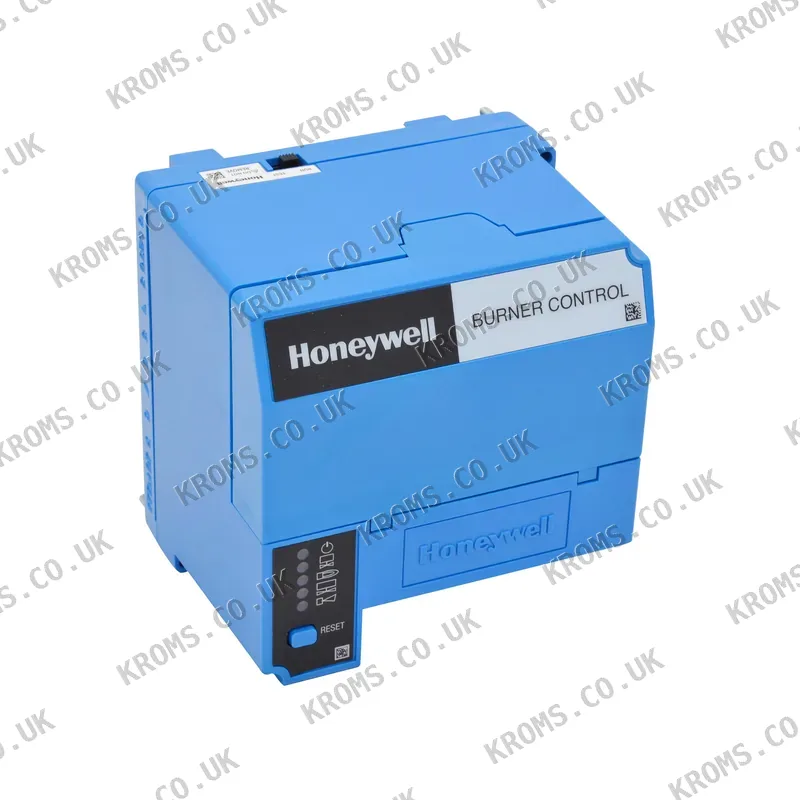

Honeywell Burner control unit EC7820A1026/U

The Honeywell EC7820A1026/U is a burner control unit designed for controlling a single low-pressure burner. It ensures sequential execution of burner operations, monitors the flame, displays system status, performs system and self-diagnostics, and detects and diagnoses faults. Technical data includes a start-up period of 2 seconds, postoperative purge of 5 seconds, and 1 ignition attempt. Dimensions are 127 mm width, 127 mm height, and 155 mm thickness with a Q7800B base. It operates at an ambient temperature range of -40 to 60 °C, with a power consumption of 10 W and a fuse rating of 20 A.

Parts of this type are selected by matching the control unit to the specific burner system, including the mounting base (e.g., Q7800A or Q7800B 22-pin bases) and compatible flame signal amplifiers (e.g., R7824, R7847, R7848, R7849, R7861, R7886). The unit must be installed on a compatible base, and the wiring must match the system's power supply voltage (220–240 V, 50 Hz) and frequency. Ensure the ambient temperature and humidity conditions are within the specified ranges. The thickness varies with the base used: 133 mm with Q7800A and 155 mm with Q7800B, so verify the base type before installation.

Items of this kind may fail due to electrical surges, overheating, or component wear, leading to symptoms such as the burner not starting, intermittent operation, or failure to ignite. The control unit may display error codes or fail to respond to reset attempts. Check the fuse (rated 20 A), power supply, and wiring connections for faults. Also, verify that the flame signal amplifier and purge timer cards are functioning correctly, as these are integral to the control sequence.
