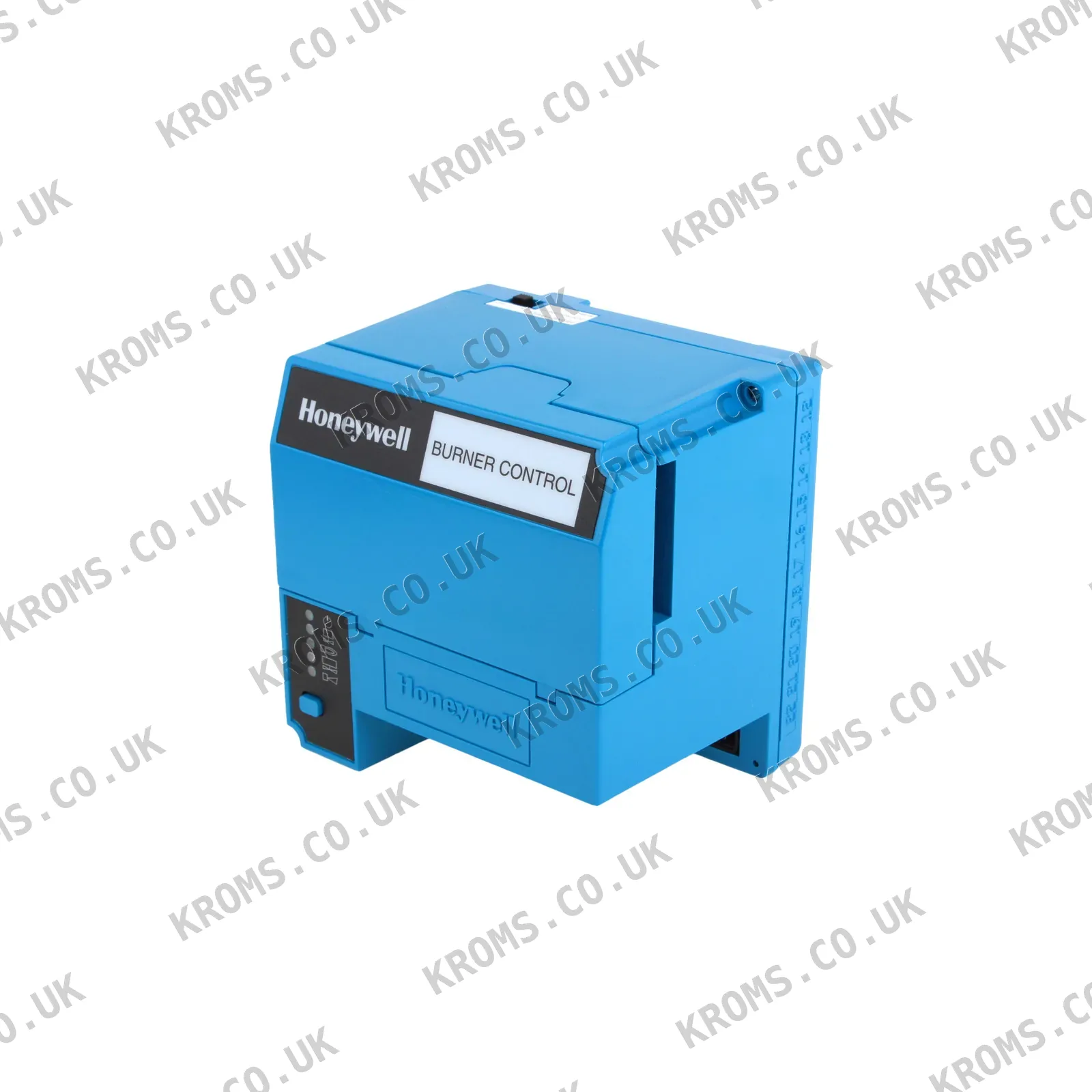

Honeywell Burner control EC7850A1080/U

The Honeywell EC7850A1080/U is a burner control unit that provides automatic sequencing of burner operations, flame monitoring, system status indication, system diagnostics, and fault detection. It operates with a power supply of 220-240 V, 50/60 Hz, and has a maximum power consumption of 10 W. The device features five LEDs for status indication and a five-function switch for mode selection. It includes interchangeable, removable flame signal amplifiers and supports local or remote transmission of operational or fault information. The unit is compatible with Honeywell flame detectors and has non-volatile memory for storing process history and lockout status during power failures.

Parts of this type are selected by matching the power supply voltage, frequency, and connected load requirements of the burner system. The physical dimensions, including width, height, and thickness, must fit the mounting space, and the base type (e.g., Q7800A or Q7800B) must be compatible. The flame signal amplifier and flame detector must be compatible with the control unit. Ensure the ambient temperature and humidity conditions of the installation site are within the specified ranges.

Common failure modes for burner control units include failure to start or sequence properly, loss of flame signal detection, and incorrect status indication. Symptoms may include the burner not igniting, frequent lockouts, or erratic operation. Check the power supply, fuses, and wiring connections. Verify that the flame detector and signal amplifier are functioning and properly connected. Inspect for signs of overheating or moisture damage.
