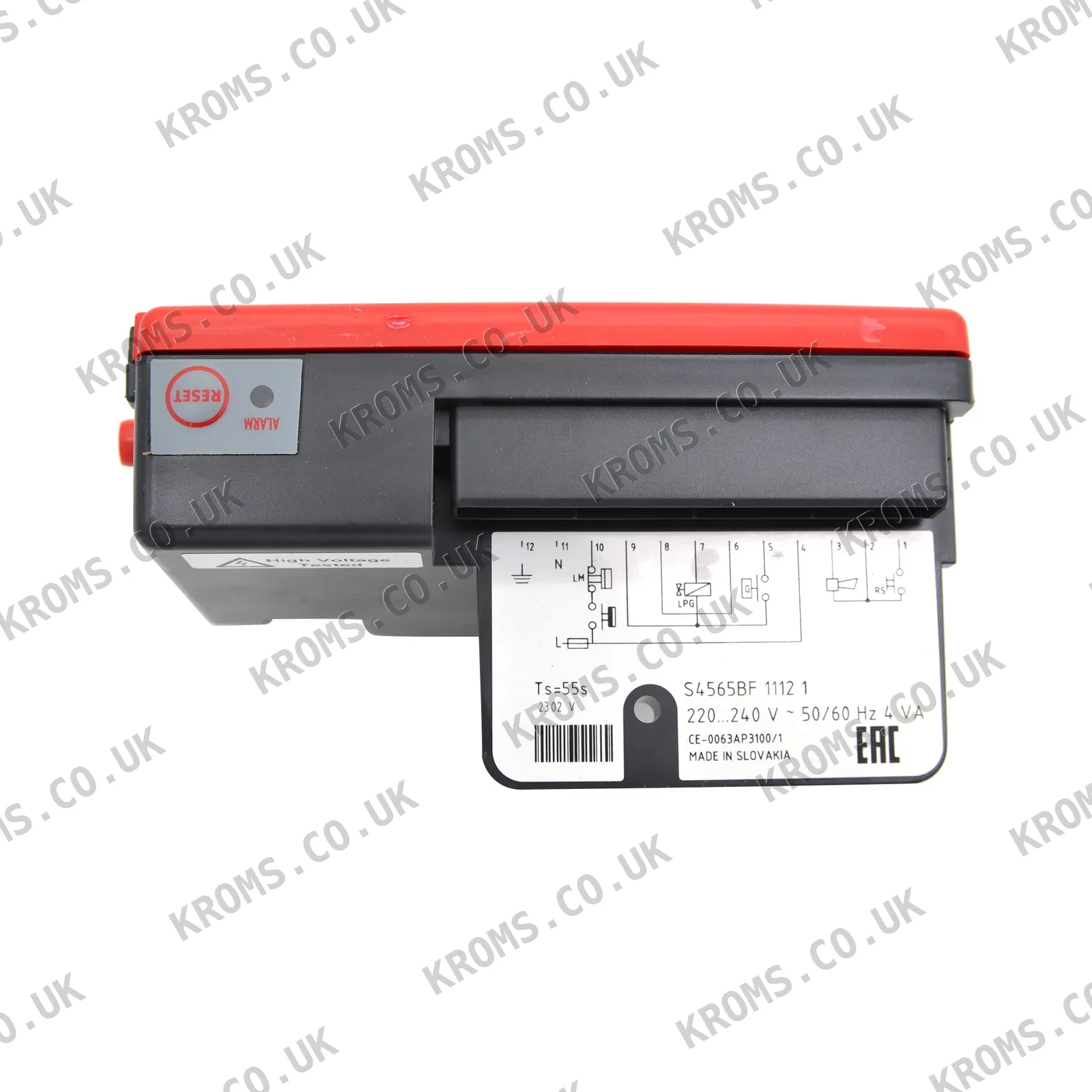

Honeywell Gas boiler control unit S4565BF1112U
SKU S4565BF1112U
Model S4565BF1112
Brand Honeywell
Photos
Key specifications
| Supply voltage | 220–240 V |
|---|---|
| Protection class (IP) | IPX4 |
| Fan control rating | 1 A |
| Application | dbi or ip |
| Enclosure type | new or old n |
| Compatible gas valves | vk4100 series |
| Ignition and flame extinguishing | separate (s) or combined (c) |
| Flame sensor | phase (p) or phase-vertical (n) |
| Flame power | pdt(s), pdt(d) or for op |
| Spark frequency | 6 Hz |
| Minimum open spark voltage | 15 kV |
| Reset wait time | 15 s |
| Connector on top | Yes |
| Safety standard | EN 60335 |
| Ambient temperature | -15–60 °C |
| Gas regulator compatibility | vk41 series |
| Fan voltage | 220–240 V |
| Fan current | 1 A |
| Installation position | any |
| Mounting position | any |
| Reset button type | own or external |
| Reset method | button |
| EN 298 compliance | Yes |
| Direct flame interaction | No |
| Controlled components | main and pilot burner |
| Combustion type | atmospheric |
| Ignition type | pilot ignition |
| Model variant | bf |
| Frequency | 50 Hz |
| Power consumption | 4 W |
| Application type | Atmospheric gas burner control |
| Safety feature | Manual reset lockout |
| Emergency protection | reliable emergency protection |
| Flame monitoring | Yes |
| Built-in timer | Yes |
202.05 EUR
183.68EUR
in stock · 7
incl. 21% VAT · 151.80 EUR excl. VAT · shipping calculated at checkout
- Worldwide shipping from stock
- Original manufacturer part
- Dispatch within 24 h for stocked items
Description
This control box is an atmospheric gas burner control unit designed for gas boilers, compatible with Honeywell VK41 series gas regulators and De Dietrich DTG X..N series boilers. It controls the main and pilot burner, providing ignition and flame monitoring. Operating on 220–240 V AC at 50 Hz, it consumes 4 W and features a manual reset lockout, a built-in ignition timer, and spark ignition at 6 Hz with 15 kV spark voltage. The unit includes a connector on top for installation and carries an IPX4 protection rating.
Further details
| Application area | gas boilers, heaters and water heaters |
|---|---|
| Humidity Max | 90% r.h. (at 40°c) without condensation |
| Ignition Configuration | circular (g), closed loop (cl), alternating current (g) or direct current (g) |
| Ignition type | circular, closed loop, alternating current, direct current |
| Installation Orientation | within an angle of 90° in any direction from the vertical position |
| Integrated Protection | all burner control protection functions are integrated into a reliable system |
| Supported Ignition Systems | systems with spark ignition of the burner (dbi) and systems with ignition of the pilot burner (ip) |
Choosing and fitting
When selecting a control box of this type, verify that the supply voltage (220–240 V, 50 Hz) matches the burner circuit and that the gas valve is from the compatible VK4100 series and the gas regulator from the VK41 series. The unit is installed directly onto the gas regulator; a connector on top simplifies the electrical connection. Mounting can be in any position, including within an angle of 90° from the vertical. Also confirm that the application type (direct burner ignition or pilot ignition) and the flame sensor phase configuration correspond to the existing system.
Fits equipment
De Dietrich DTG X..N seriesHoneywell VK41 series
All specifications
| Supply voltage | 220–240 V |
|---|---|
| Protection class (IP) | IPX4 |
| Fan control rating | 1 A |
| Application | dbi or ip |
| Enclosure type | new or old n |
| Compatible gas valves | vk4100 series |
| Ignition and flame extinguishing | separate (s) or combined (c) |
| Flame sensor | phase (p) or phase-vertical (n) |
| Flame power | pdt(s), pdt(d) or for op |
| Spark frequency | 6 Hz |
| Minimum open spark voltage | 15 kV |
| Reset wait time | 15 s |
| Connector on top | Yes |
| Safety standard | EN 60335 |
| Ambient temperature | -15–60 °C |
| Gas regulator compatibility | vk41 series |
| Fan voltage | 220–240 V |
| Fan current | 1 A |
| Installation position | any |
| Mounting position | any |
| Reset button type | own or external |
| Reset method | button |
| EN 298 compliance | Yes |
| Direct flame interaction | No |
| Controlled components | main and pilot burner |
| Combustion type | atmospheric |
| Ignition type | pilot ignition |
| Model variant | bf |
| Frequency | 50 Hz |
| Power consumption | 4 W |
| Application type | Atmospheric gas burner control |
| Safety feature | Manual reset lockout |
| Emergency protection | reliable emergency protection |
| Flame monitoring | Yes |
| Built-in timer | Yes |
Part numbers
| SKU | S4565BF1112U |
|---|---|
| Additional article | 534.412.046 |
| Model | S4565BF1112 |
| OEM equivalent | 85565610 |
