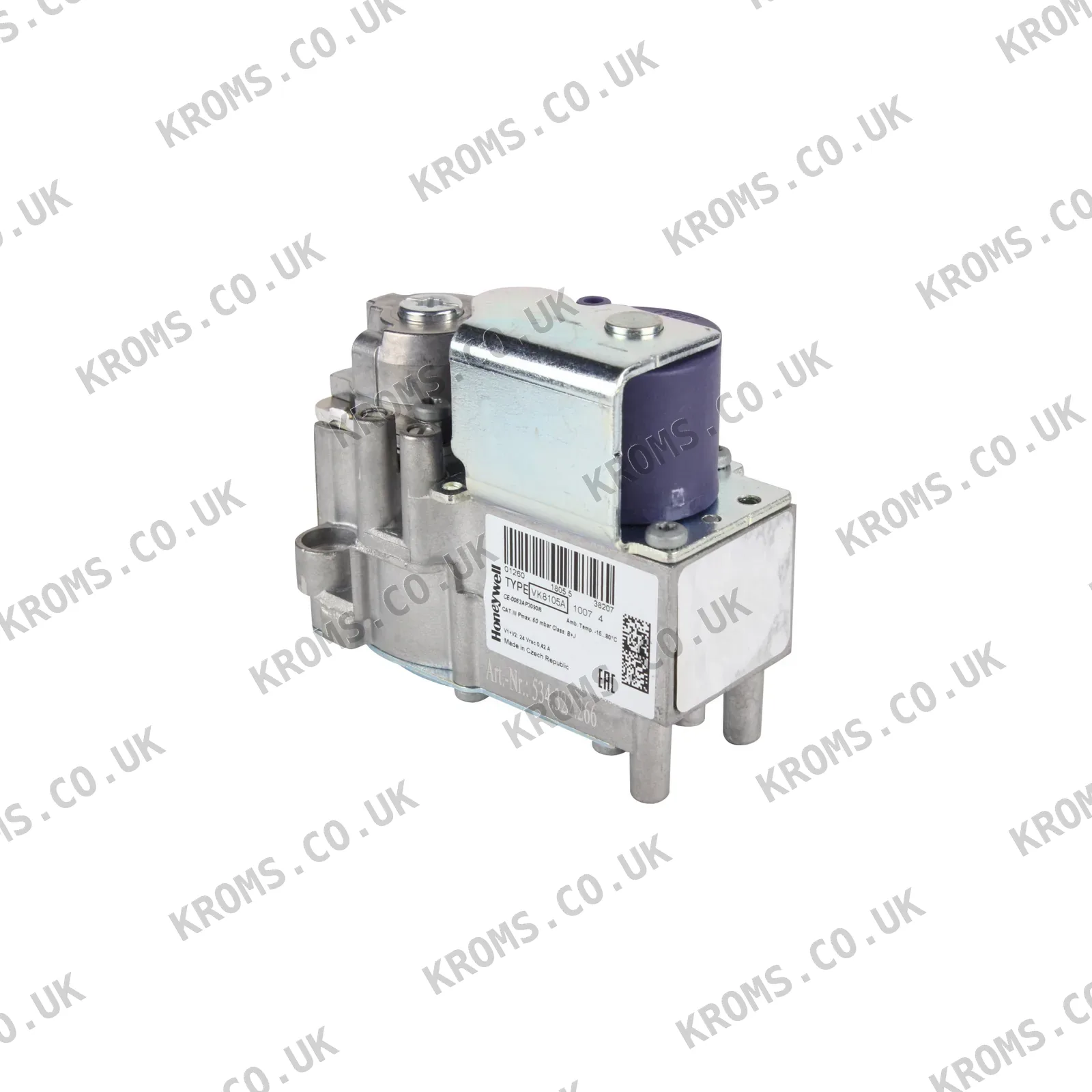

Honeywell solenoid valve VK8105A1007B
SKU VK8105A1007B
Model VK8105A1007
Brand Honeywell
Photos
Key specifications
| Supply voltage | 24 V |
|---|---|
| Frequency | 50 Hz |
| Inlet and outlet diameter | 18.6 mm |
| Electrical connection | connector or plug-in rectifier unit |
| Design features | positive feedback system |
| Input screen | on the input side |
| Actuator type | solenoid |
| connection_type | flanged |
| Flow capacity | 3.4 m³/h |
| Outlet Orientation | side outlet |
| Maximum inlet pressure | 60 mbar |
| Maximum operating pressure | 45 mbar |
| Leakage requirements | EN 126 |
| Nominal inlet gas pressure | 25 mbar |
| Diaphragm diameter | 2.8 mm |
| Ambient pressure | 1013 mbar |
| Pressure sensor pipe diameter | 0.5 inch |
| Operating position | upright |
| Housing type | standard |
| Gas type | natural, liquefied |
| Pilot gas connection diameter | 4 mm |
| Control features | electric two-level control mechanism |
| Regulation of the mixture of gas and air in a ratio of 1 | 1 |
| Coil voltage type | AC |
| Ignition systems supported | standard DBI ignition systems |
| Max. inlet pressure | 60 mbar |
| Valve type | gas solenoid valve |
| Compression fitting | 4–6 mm |
| Softlite technology | yes |
| Mounting feature | holes for mounting |
| Built-in filter | fine-mesh filter |
| Optional output filter | available |
| Ignition electronics compatibility | various ignition regulators (except S4565/S4585) |
| Throttle valve regulation | yes |
| Pressure relief valve | present |
| Pressure servo controller | high-tech pressure servo controller |
| Adjustment method | gradual adjustment, throttle valve |
| Pressure drop | 3 mbar |
| Flange collector required | yes |
| Filter cleaning | not intended for cleaning |
| Output pressure stability | stable output pressure |
| Current consumption | 0.42 A |
| Flanged connections | yes |
| Control type | pressure control by servo drive |
| Standard DBI ignition systems | plug-in rectifier unit |
| Back pressure (1st valve) | 0 mbar |
175.69 EUR
159.72EUR
in stock · 2
incl. 21% VAT · 132.00 EUR excl. VAT · shipping calculated at checkout
- Worldwide shipping from stock
- Original manufacturer part
- Dispatch within 24 h for stocked items
Description
A gas solenoid valve for burner control and ignition, this component provides gas flow regulation for both pilot and main burners. It operates on 24 V AC at 50 Hz, drawing 0.42 A. The valve handles natural and liquefied gas with a nominal inlet pressure of 25 mbar and a maximum of 60 mbar, delivering a flow capacity of 3.4 m³/h. Its 18.6 mm inlet and side outlet use flanged connections, and a flange collector is required for the side outlet. It features a fine-mesh filter, Softlite technology for smooth ignition, and a pressure relief valve.
Further details
| Adjustment method | gradual adjustment with the possibility of adjustment for various control methods |
|---|---|
| Application | ignition and gas flow control for the pilot and main burner |
| Built In Filter | fine-mesh filter, not intended for cleaning |
| Built-in component | built-in VK8105A1007 gas valve and an ignition regulator |
| Ignition electronics compatibility | not compatible with S4565/S4585 series regulators |
| Included Components | built-in vk8105a 1007 gas valve and an ignition regulator |
| Mounting Feature | holes for mounting to the installation |
| Operating Principle | gas passes through the servo controller and opens the main valve |
| Optional Output Filter | additional output filter can be installed |
| Output pressure stability | stable output pressure even with changes in input pressure |
| Pressure Measuring Fittings | silicone tubes with a diameter of 4 or 6 mm |
| Pressure Measuring Points | top for measuring inlet and outlet pressure |
| Pressure Test Points | top for measuring inlet and outlet pressure |
| Safety Feature | automatic closing of the main valve |
| Side gas outlet | for the main and pilot burners |
| Softlite Technology | start with smooth ignition, using innovative softlite technology |
Choosing and fitting
Gas valves of this type are selected by supply voltage, connection type, and flow capacity. Confirm that the electrical supply is 24 V AC at 50 Hz, and that the inlet and outlet flanges match the existing pipe spacing and diameter (18.6 mm). The valve must be installed upright; verify the mounting orientation. If the outlet is on the side, a flange collector is required. Also check the gas type and pressure ratings against the system requirements.
All specifications
| Supply voltage | 24 V |
|---|---|
| Frequency | 50 Hz |
| Inlet and outlet diameter | 18.6 mm |
| Electrical connection | connector or plug-in rectifier unit |
| Design features | positive feedback system |
| Input screen | on the input side |
| Actuator type | solenoid |
| connection_type | flanged |
| Flow capacity | 3.4 m³/h |
| Outlet Orientation | side outlet |
| Maximum inlet pressure | 60 mbar |
| Maximum operating pressure | 45 mbar |
| Leakage requirements | EN 126 |
| Nominal inlet gas pressure | 25 mbar |
| Diaphragm diameter | 2.8 mm |
| Ambient pressure | 1013 mbar |
| Pressure sensor pipe diameter | 0.5 inch |
| Operating position | upright |
| Housing type | standard |
| Gas type | natural, liquefied |
| Pilot gas connection diameter | 4 mm |
| Control features | electric two-level control mechanism |
| Regulation of the mixture of gas and air in a ratio of 1 | 1 |
| Coil voltage type | AC |
| Ignition systems supported | standard DBI ignition systems |
| Max. inlet pressure | 60 mbar |
| Valve type | gas solenoid valve |
| Compression fitting | 4–6 mm |
| Softlite technology | yes |
| Mounting feature | holes for mounting |
| Built-in filter | fine-mesh filter |
| Optional output filter | available |
| Ignition electronics compatibility | various ignition regulators (except S4565/S4585) |
| Throttle valve regulation | yes |
| Pressure relief valve | present |
| Pressure servo controller | high-tech pressure servo controller |
| Adjustment method | gradual adjustment, throttle valve |
| Pressure drop | 3 mbar |
| Flange collector required | yes |
| Filter cleaning | not intended for cleaning |
| Output pressure stability | stable output pressure |
| Current consumption | 0.42 A |
| Flanged connections | yes |
| Control type | pressure control by servo drive |
| Standard DBI ignition systems | plug-in rectifier unit |
| Back pressure (1st valve) | 0 mbar |
Part numbers
| SKU | VK8105A1007B |
|---|---|
| Additional article | 534.322.266 |
| Model | VK8105A1007 |
