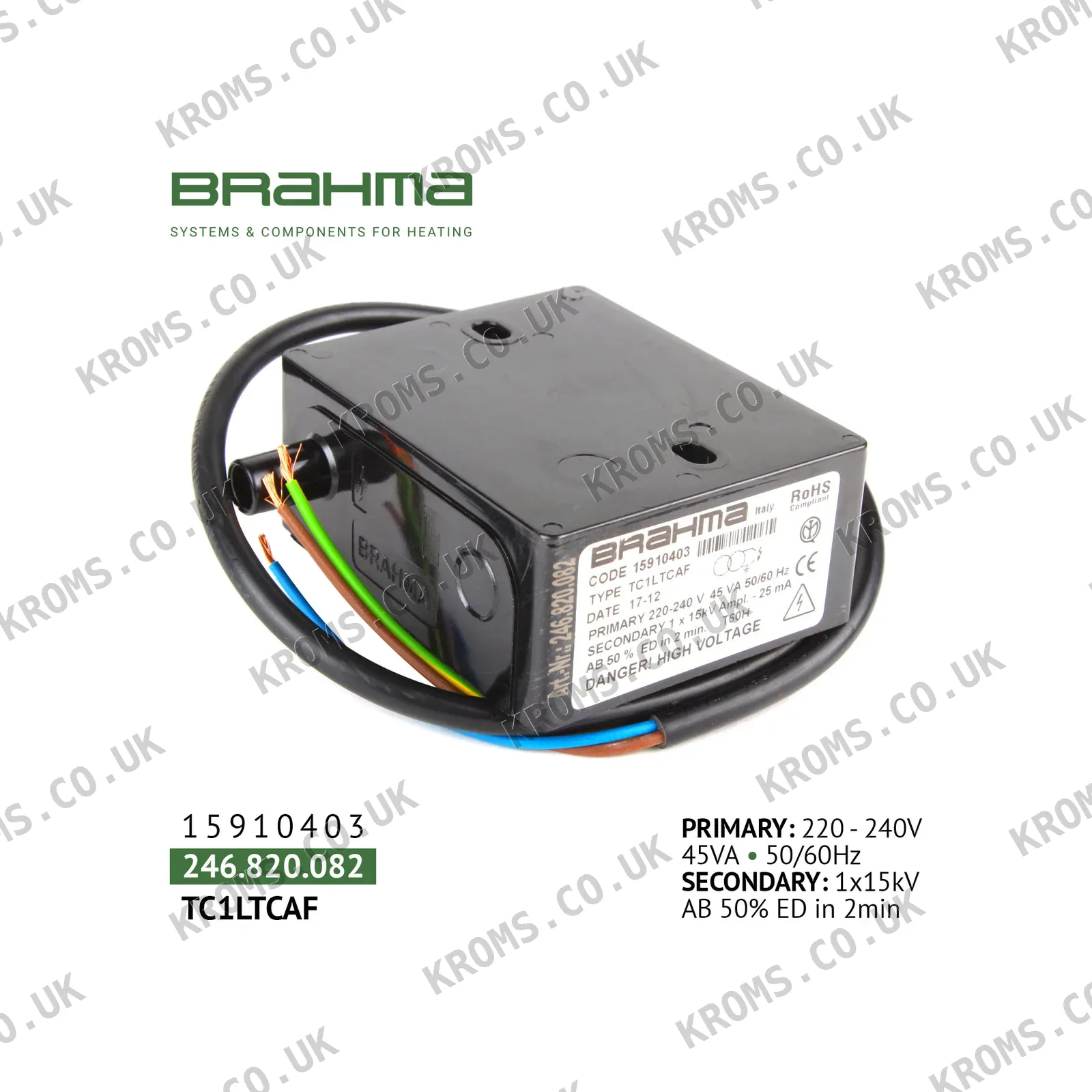

Brahma Ignition transformer TC1LTCAF 15910403
SKU 15910403
Model TC1LTCAF
Brand Brahma
Photos
Key specifications
| Supply voltage | 110-120 V 50/60 Hz |
|---|---|
| Secondary voltage | 15 kV |
| Poles / outlets | 1 |
| Maximum length of ignition cable with integrated electronic ignition | 1.5 m |
| Number of contacts | 1 |
| Peak current (mA) | 45 mA |
| Rated current (mA) | 20 mA |
| Recommended spark distance | 3–5 mm |
| Standard power cable length | 560 mm |
| Output voltage frequency | 6–10 kHz |
| Varistor protection | built-in |
| Core material | ferrite |
| Safety feature | short-circuit protection |
| Technology | high-frequency electronic generator |
| Operating principle | step-up transformer with ferritic core |
| Ingress protection | IP00 |
| Mounting feature | M4x45 screw mounting for controllers |
| Electromagnetic interference protection | optional filter to reduce interference |
| Thermal compound | high thermal conductivity compound |
| Duty cycle | 50 % |
| Net weight | 0.42 kg |
| Power consumption | 45 W |
| Frequency | 50–60 Hz |
67.88 EUR
61.71EUR
in stock · 4
incl. 21% VAT · 51.00 EUR excl. VAT · shipping calculated at checkout
- Worldwide shipping from stock
- Original manufacturer part
- Dispatch within 24 h for stocked items
Description
The Brahma TC1LTCAF is an ignition transformer designed for use in burners. It operates from a supply voltage of 110-120 V at 50/60 Hz and generates a secondary voltage of 15 kV. The unit has a duty cycle of 50% and consumes 45 W. It features a ferrite core, a built-in varistor, and short-circuit protection. The recommended spark distance is 3-5 mm, and the maximum ignition cable length is 1.5 m.
Further details
| Application | gas burners and liquid fuel burners |
|---|---|
| Certification | LVD 73/23/EEC, EN 61558-1, EN 61558-2-3 |
Choosing and fitting
When replacing an ignition transformer, verify the supply voltage, secondary voltage, duty cycle, and number of contacts. Check the mounting arrangement: for Brahma controllers, the transformer is fixed with M4x45 screws. Examine the high-voltage cable connection type, which may be a threaded connection or a Ø4 mm connector, and select the matching version. Also consider whether an electromagnetic interference filter is required for the installation.
Fits equipment
Brahma controllers
All specifications
| Supply voltage | 110-120 V 50/60 Hz |
|---|---|
| Secondary voltage | 15 kV |
| Poles / outlets | 1 |
| Maximum length of ignition cable with integrated electronic ignition | 1.5 m |
| Number of contacts | 1 |
| Peak current (mA) | 45 mA |
| Rated current (mA) | 20 mA |
| Recommended spark distance | 3–5 mm |
| Standard power cable length | 560 mm |
| Output voltage frequency | 6–10 kHz |
| Varistor protection | built-in |
| Core material | ferrite |
| Safety feature | short-circuit protection |
| Technology | high-frequency electronic generator |
| Operating principle | step-up transformer with ferritic core |
| Ingress protection | IP00 |
| Mounting feature | M4x45 screw mounting for controllers |
| Electromagnetic interference protection | optional filter to reduce interference |
| Thermal compound | high thermal conductivity compound |
| Duty cycle | 50 % |
| Net weight | 0.42 kg |
| Power consumption | 45 W |
| Frequency | 50–60 Hz |
Part numbers
| SKU | 15910403 |
|---|---|
| Additional article | 246.820.082 |
| Model | TC1LTCAF |
