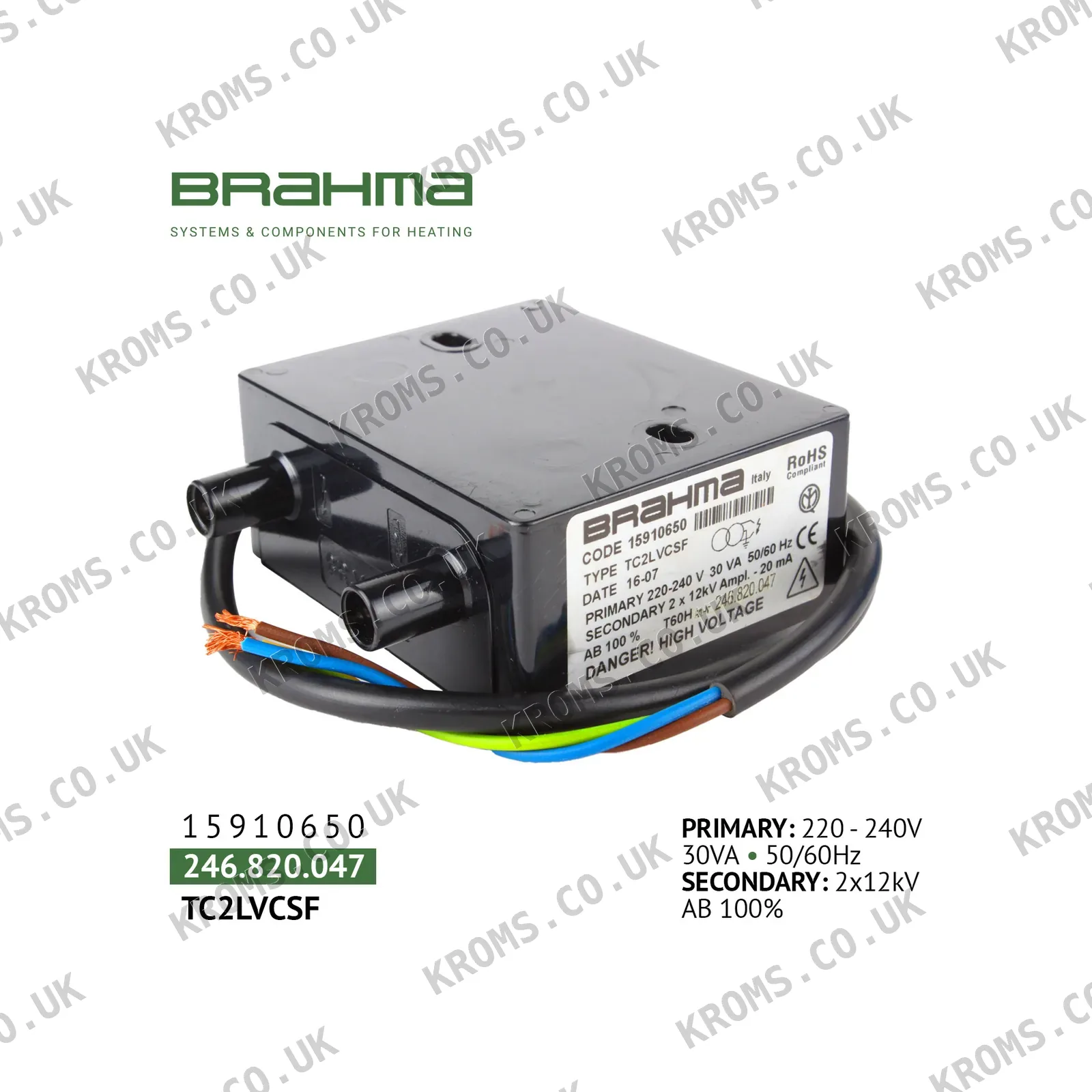

Brahma Ignition transformer TC2LVCSF 15910650

The Brahma TC2LVCSF (SKU 15910650) is a high-frequency electronic ignition transformer for domestic, commercial, and industrial burner applications. It operates from a 110–120 V 50/60 Hz supply, consumes 30 W, and is rated for 100% duty cycle for continuous operation. A ferritic-core electronic circuit generates a peak voltage of 24 kV and a peak current of 55 mA at 8.5–12 kHz, and a built-in varistor and short-circuit protection are included. The recommended spark distance is 3–5 mm; the maximum ignition cable length is 1.5 m, and the standard power cable is 560 mm. The transformer has two poles and weighs 420 g.

Ensure the replacement ignition transformer matches the supply voltage, frequency, output voltage, and duty cycle of the original. The power connection can be either a built-in cable or a connector, and the high-voltage connection may be threaded or plug-in; verify which type is fitted. Install the unit with power off; it can be mounted in any position, but keep high-voltage cables away from other wiring.
