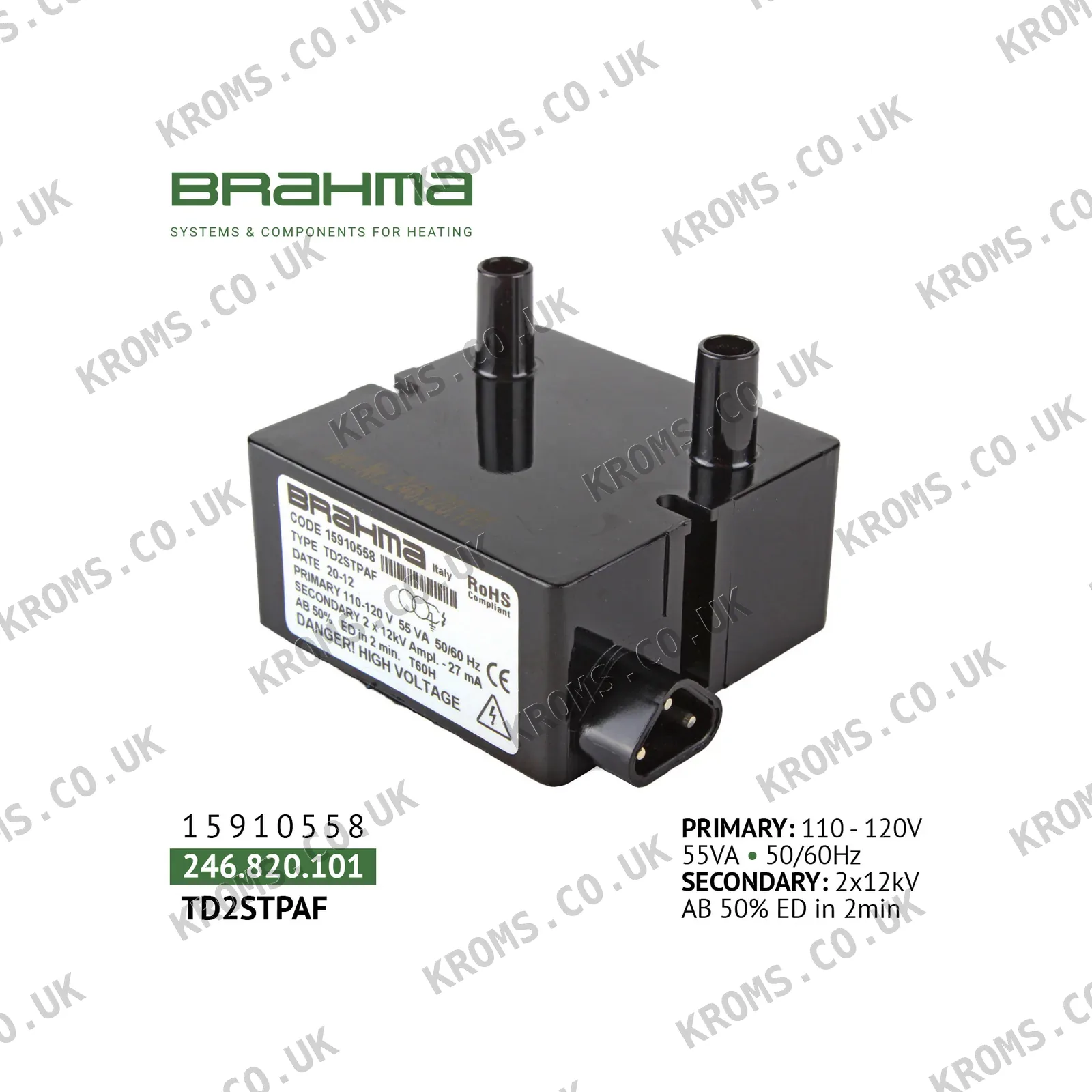

Brahma Ignition transformer TD2STPAF 15910558

SKU 15910558 Model TD2STPAF Brand Brahma

Photos

Key specifications

Supply voltage	220–240 V
Catalogue article numbers	246.820.101
Input voltage range	110-120 V or 220-240 V
Peak voltage	12 kV
Peak current (mA)	55 mA
Rated current (mA)	30 mA
Operating temperature	-10–60 °C
Ingress protection	IP00
Recommended spark distance	3–5 mm
Maximum length of ignition cable with integrated electronic ignition	1.5 m
Standard power cable length	560 mm
Core material	ferritic
Number of contacts	2
Safety feature	built-in short circuit protection
Built-in filter	integrated EMC filter
External filter not required	not required
Certification	Directive 2004/108/EC
Application	gas and liquid fuel burners
Fuel	gas and liquid fuel
Output voltage frequency	6 kHz
Mounting feature	various fastening and connecting systems
Duty cycle	50 %
Net weight	0.36 kg
Power consumption	55 W
Frequency	50–60 Hz
Ambient temperature, max	60 °C

all specifications (26) ↓

67.88 EUR

61.71EUR

in stock · 1

incl. 21% VAT · 51.00 EUR excl. VAT · shipping calculated at checkout

Worldwide shipping from stock
Original manufacturer part
Dispatch within 24 h for stocked items

Description

This ignition transformer from Brahma (SKU 15910558, model TD2STPAF) supplies high-voltage ignition sparks for gas and liquid fuel burners. It operates at 220–240 V (or optionally 110–120 V) with a 50/60 Hz supply and delivers a peak voltage of 12 kV at a peak current of 55 mA, with a rated current of 30 mA. The power consumption is 55 W and the output frequency is 6 kHz. It has a duty cycle of 50%, an ingress protection rating of IP00, and can operate in ambient temperatures from -10 °C to 60 °C. The unit weighs 0.36 kg net, includes an integrated EMC filter and built-in short circuit protection, and is certified to Directive 2004/108/EC. Recommended spark gap is 3–5 mm, and the maximum ignition cable length is 1.5 m.

Further details

Output type	single or two-pin high voltage output

All specifications

Supply voltage	220–240 V
Catalogue article numbers	246.820.101
Input voltage range	110-120 V or 220-240 V
Peak voltage	12 kV
Peak current (mA)	55 mA
Rated current (mA)	30 mA
Operating temperature	-10–60 °C
Ingress protection	IP00
Recommended spark distance	3–5 mm
Maximum length of ignition cable with integrated electronic ignition	1.5 m
Standard power cable length	560 mm
Core material	ferritic
Number of contacts	2
Safety feature	built-in short circuit protection
Built-in filter	integrated EMC filter
External filter not required	not required
Certification	Directive 2004/108/EC
Application	gas and liquid fuel burners
Fuel	gas and liquid fuel
Output voltage frequency	6 kHz
Mounting feature	various fastening and connecting systems
Duty cycle	50 %
Net weight	0.36 kg
Power consumption	55 W
Frequency	50–60 Hz
Ambient temperature, max	60 °C

Part numbers

SKU	15910558
Additional article	246.820.101
Model	TD2STPAF
