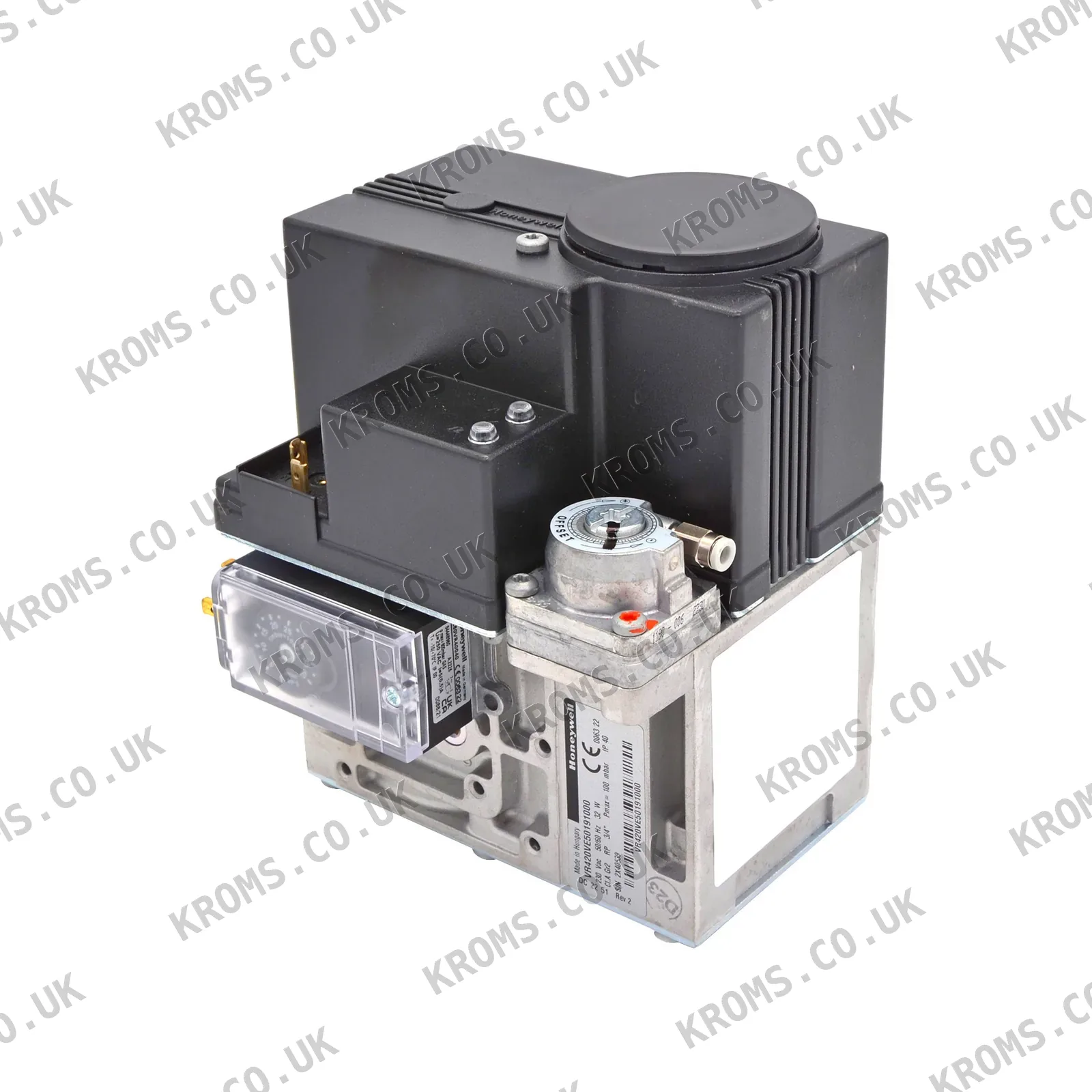

Honeywell Servo-combi gas valve VR420VE5019-1000
SKU VR420VE5019-1000
Brand Honeywell
Photos
Key specifications
| Nominal diameter (DN) | 20 mm |
|---|---|
| Max. inlet pressure | 200 mbar |
| Supply voltage | 230 V |
| Housing IP | IP 40 |
| Body material | aluminum alloy, injection molding |
| Filter element cell size | 0.34 mm |
| Closing spring material | aisi 302 steel |
| Valve plunger coating | fe 360 |
| Flange kit | 1 flange with sealing plug 1 o-ring and 4 screws 1 pressure measuring fitting installed |
| Mesh filter standard | en 161 |
| Electrical safety | en 60335 series |
| Pressure control valve location | between valves v1 and v2 |
| Flange connections | 4 flange connections on each side of the main body |
| Inlet pressure switch compatibility | c60vr series |
| Intermediate pressure switch compatibility | c60vr series |
| Operating principle | forced-action servo system |
| Adjustment method | adjusting screw |
| Actuator type | two-position actuators |
| Valve class | a |
| Strainer material | aisi 303 steel |
| Pressure measuring fittings | 1 pressure measuring fitting installed |
| Pressure regulation | pressure regulator cover screw |
| Frequency | 60 Hz |
| Flow capacity | 1 m³/h |
958.32 EUR
871.20EUR
in stock · 2
incl. 21% VAT · 720.00 EUR excl. VAT · shipping calculated at checkout
- Worldwide shipping from stock
- Original manufacturer part
- Dispatch within 24 h for stocked items
Description
The Honeywell VR420VE5019-1000 is a servo-combi gas valve with a nominal diameter of 20 mm, designed for controlling gaseous fuel flow in gas burners and boilers. It operates with a supply voltage of 230 V at 60 Hz, has a maximum inlet pressure of 200 mbar, and a flow capacity of 1 m³/h. The valve body is made of aluminum alloy via injection molding, and the housing has an IP 40 rating. It includes a flange kit with one flange, sealing plug, O-ring, four screws, and one pressure measuring fitting installed. The valve meets EN 161 for mesh filters and EN 60335 series for electrical safety.
Further details
| Actuator Components | coil and a locking sleeve, inside which there is a plunger connected to a rubber valve |
|---|---|
| Application Purpose | control the flow of gaseous fuel in various devices, including powerful gas burners, atmospheric gas boilers, melting furnaces, incinerators and other gas-consuming devices |
| Built In Valve | two main valves, v1 and v2 |
| Ignition Systems Supported | spark ignition of the burner (dbi) and with pilot burner (ip) |
| Pressure Feedback Connection | open the pressure feedback connection (if provided) |
| Pressure Measuring Points | inlet and outlet pressure measuring fittings |
| Pressure Servo Controller | includes a pressure relief valve built into the regulator diaphragm |
| Regulator Classification | class c according to en 126/en 88 |
| Regulator Spring Lock | if no regulation is required, the full pressure of the "servogas" determines the position of the control valve based on the pressure |
| Restore Pressure Feedback | restore the pressure feedback connection (if provided) |
| Seal Material | hydrocarbon-resistant types of butadiene-acrylonitrile (nbr) and viton rubber |
| Strainer Cleaning | can be cleaned by unscrewing the inlet flange screws |
| Valve Classification | class a + a according to en 126/en 161 |
| Valve Inspection System Compatibility | vps in combination with the pressure switch |
| Valve V1 Operation | opens and closes quickly at all times |
Choosing and fitting
When selecting a replacement gas valve of this type, ensure the nominal diameter, supply voltage, frequency, and maximum inlet pressure match the existing system. Verify the flange connections and compatibility with pressure switches (e.g., C60VR series) if used. The valve must be installed according to the manufacturer's instructions, ensuring proper sealing and electrical connections.
Signs of failure
Common failures include sticking or leaking valves due to debris or wear, leading to improper gas flow or pressure fluctuations. Electrical issues may cause the valve to fail to open or close, resulting in burner ignition problems or unsafe operation. Check for blockages in the filter, damage to seals, and correct actuator operation.
All specifications
| Nominal diameter (DN) | 20 mm |
|---|---|
| Max. inlet pressure | 200 mbar |
| Supply voltage | 230 V |
| Housing IP | IP 40 |
| Body material | aluminum alloy, injection molding |
| Filter element cell size | 0.34 mm |
| Closing spring material | aisi 302 steel |
| Valve plunger coating | fe 360 |
| Flange kit | 1 flange with sealing plug 1 o-ring and 4 screws 1 pressure measuring fitting installed |
| Mesh filter standard | en 161 |
| Electrical safety | en 60335 series |
| Pressure control valve location | between valves v1 and v2 |
| Flange connections | 4 flange connections on each side of the main body |
| Inlet pressure switch compatibility | c60vr series |
| Intermediate pressure switch compatibility | c60vr series |
| Operating principle | forced-action servo system |
| Adjustment method | adjusting screw |
| Actuator type | two-position actuators |
| Valve class | a |
| Strainer material | aisi 303 steel |
| Pressure measuring fittings | 1 pressure measuring fitting installed |
| Pressure regulation | pressure regulator cover screw |
| Frequency | 60 Hz |
| Flow capacity | 1 m³/h |
Part numbers
| SKU | VR420VE5019-1000 |
|---|---|
| Additional article | 534.322.217 |
