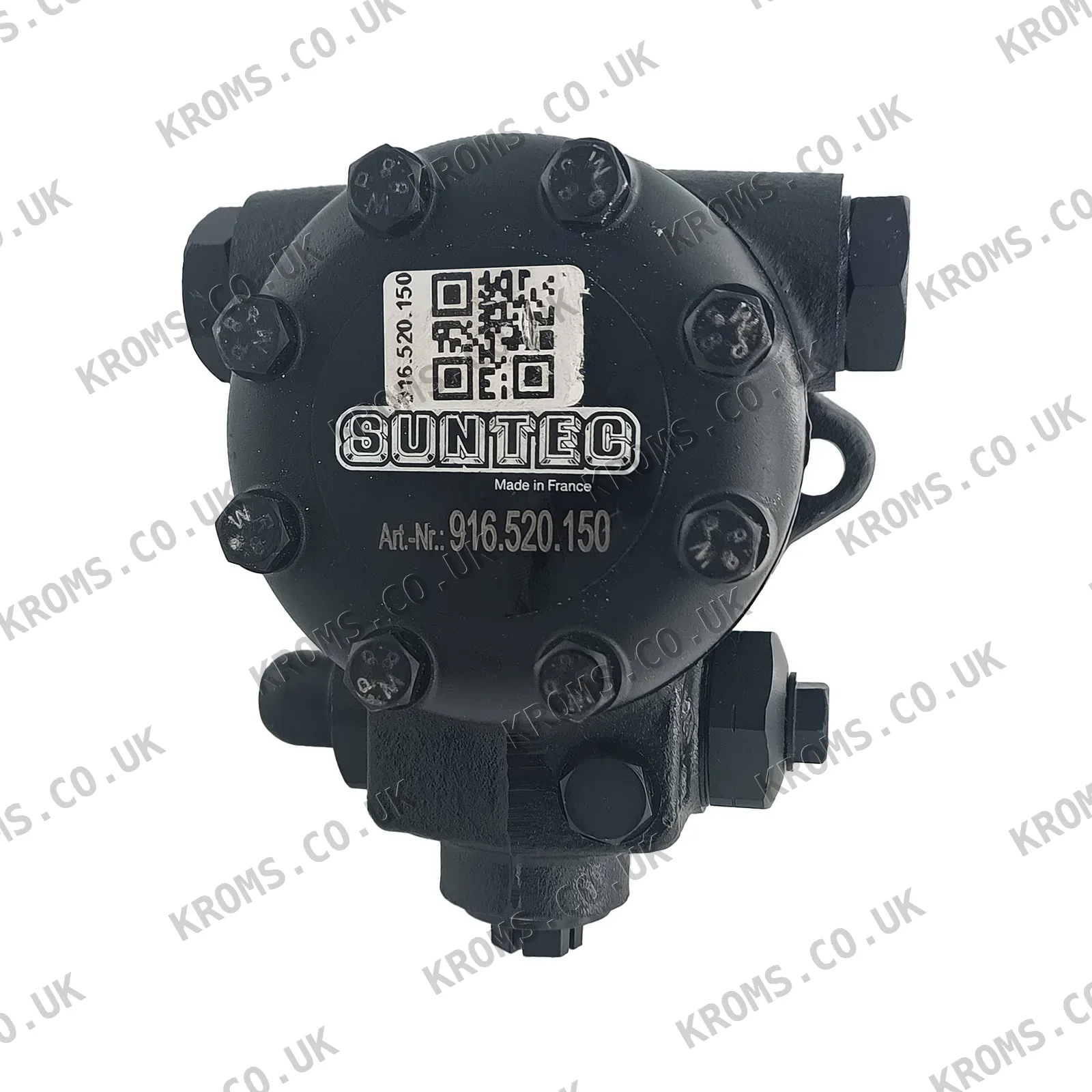

Suntec Oil pump J6CCE1002

SKU J6CCE1002 Brand Suntec

Photos

Key specifications

Weight	4150 g
Setting range	10000–30000 mbar
Factory set pressure	12 bar
Operating viscosity	2.0-75.0 mm²/s
Suction lift max	0.45 bar
Torque, Nm	0.3 Nm
Shaft diameter	11 mm
System type	single- or double-line system
Pressure regulating valve	with shut-off function
Integrated filter	present

all specifications (10) ↓

621.58 EUR

565.07EUR

in stock · 1

incl. 21% VAT · 467.00 EUR excl. VAT · shipping calculated at checkout

Worldwide shipping from stock
Original manufacturer part
Dispatch within 24 h for stocked items

Description

The Suntec Oil pump J6CCE1002 is a gear-type fuel pump designed for use in single- or double-line oil burner systems. It operates within a pressure range of 10000–30000 mbar and is factory set to 12 bar. The pump features an integrated filter and a pressure regulating valve with a shut-off function. It is suitable for fuels with an operating viscosity of 2.0-75.0 mm²/s and can handle a maximum suction lift of 0.45 bar. The pump has a shaft diameter of 11 mm and a torque of 0.3 Nm, weighing 4150 g.

Further details

Bypass Plug	installed in the return line for a double line system, removed with a 3/16" hex key for a single line system
Fuel Type	diesel fuel and medium viscosity liquid fuel
Fuel temperature	0 - 90°C in the pump
Gear assembly	draws fuel from tank through integrated filter
Inlet pressure	1.5 bar max
Mesh filter	Open area: 45 cm², hole size: 170 µm
Mounting	Flanged according to European standard EN225
Nominal speed	3600 rpm max
Outlet pressure	1.5 bar max
Shaft	11 mm according to European standard EN 225
Single-pipe system	excess fuel routed back to suction side
Suction lift	0.45 bar vacuum to prevent air separation from fuel
Torque	0.30 H.M
Two-pipe system	excess fuel discharged into return line

Choosing and fitting

When selecting an oil pump of this type, ensure the shaft diameter, mounting flange standard, and pressure range match the burner specifications. Verify the system type (single- or double-line) and adjust the bypass plug accordingly: remove it for single-line systems and seal the return port. Check the operating viscosity range and suction lift capabilities against the fuel and installation requirements.

Signs of failure

Common failures include loss of pressure due to worn gears or a clogged filter, leading to burner ignition issues or unstable flame. A faulty pressure regulating valve may cause pressure fluctuations or fuel leakage. If the pump fails to prime, check for air leaks in the suction line or a blocked filter. Excessive noise or vibration can indicate bearing wear or cavitation.

All specifications

Weight	4150 g
Setting range	10000–30000 mbar
Factory set pressure	12 bar
Operating viscosity	2.0-75.0 mm²/s
Suction lift max	0.45 bar
Torque, Nm	0.3 Nm
Shaft diameter	11 mm
System type	single- or double-line system
Pressure regulating valve	with shut-off function
Integrated filter	present

Part numbers

SKU	J6CCE1002
Additional article	916.520.150
